Advanced SIP Load Testing

Master high-volume testing, performance tuning, and stress testing techniques

⏱️ 20 min read 🔴 Advanced

Introduction

Once you're comfortable with basic SIP testing, it's time to explore advanced load testing capabilities. This tutorial covers high call rates, performance optimization, distributed testing, and capacity planning.

Understanding Load Testing Metrics

Key Performance Indicators

Calculating Capacity

# Concurrent calls = CPS × Average Call Duration (seconds)
# Example: 10 CPS × 60 seconds = 600 concurrent calls
#
# System capacity = Max CPS before failure rate exceeds threshold

Planning Your Load Test

Define Test Objectives

Before starting, clearly define what you're testing:

Test Environment Setup

Critical: Always test in a non-production environment that mirrors production as closely as possible.

Ensure you have:

Understanding the CheckOutput Screen

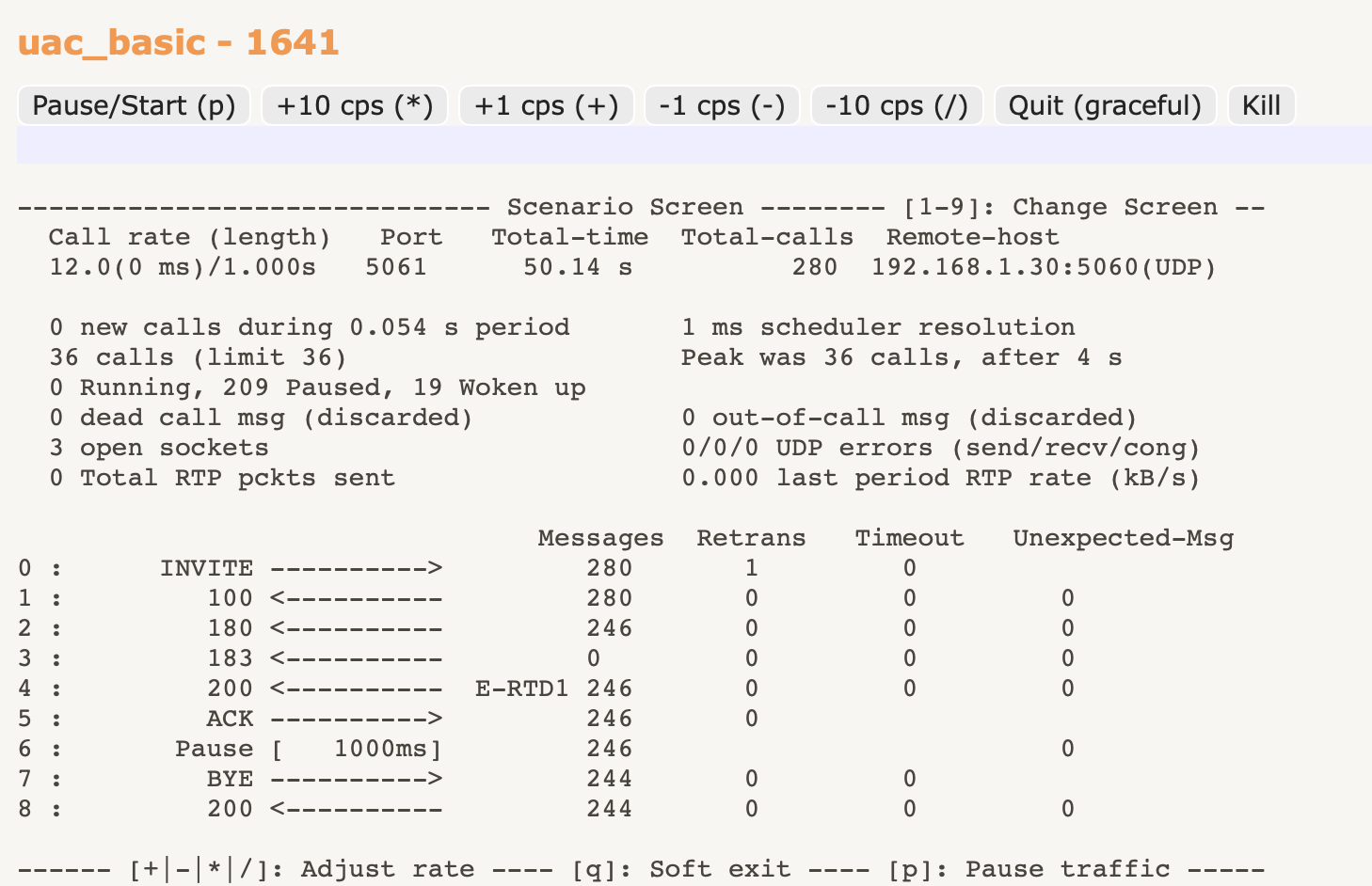

When you run a test in easySIPp, you'll see the CheckOutput button for each running SIPp process, which opens real-time SIPp statistics. This screen is basically shows the output of realtime SIPp statistics screen and in addition it shows Control buttons to control your tests.

easySIPp realtime statistics screen and control buttons

Screen 1: Scenario Screen

The main view showing call flow progress and key metrics:

------------------------------ Scenario Screen --------
  Call rate (length)   Port   Total-time  Total-calls  Remote-host
  5.0(0 ms)/1.000s   5061      72.63 s          138  127.0.0.1:5062(UDP)

  0 new calls during 0.514 s period
  15 calls (limit 15)                     Peak was 15 calls, after 13 s
  0 Running, 33 Paused, 15 Woken up

Key Metrics Explained:

Message Statistics Table:

                                 Messages  Retrans   Timeout   Unexpected-Msg
0 :      INVITE ---------->         138       190       14
1 :         100 <----------         0         0         0         0
2 :         180 <----------         109       0         0         0
3 :         200 <----------  E-RTD1 109       0         0         0
4 :         ACK ---------->         109       0
5 :       Pause [      0ms]         109                           0
6 :         BYE ---------->         109       9         1
7 :         200 <----------         108       0         0         0

Understanding the Columns:

Red Flag: In the example, INVITE has 190 retransmissions and 14 timeouts out of 138 calls. This indicates serious network or server capacity issues!

Screen 2: Statistics Screen

This screen is stacked just below the Screen 1.

----------------------------- Statistics Screen -------
  Counter Name           | Periodic value            | Cumulative value
-------------------------+---------------------------+--------------------------
  Elapsed Time           | 00:01:12:635000           | 00:01:12:635000
  Call Rate              |    0.000 cps              |    1.900 cps
-------------------------+---------------------------+--------------------------
  Outgoing calls created |        0                  |      138
  Total Calls created    |                           |      138
  Current Calls          |       15                  |
-------------------------+---------------------------+--------------------------
  Successful call        |        0                  |      108
  Failed call            |        0                  |       15
-------------------------+---------------------------+--------------------------
  Response Time 1        | 00:00:02:134000           | 00:00:02:134000
  Call Length            | 00:00:05:736000           | 00:00:05:736000

Critical Metrics:

Screen 3: Repartition Screen

Stacked below the Screen 2:

---------------------------- Repartition Screen -------
  Average Response Time Repartition 1
             0 ms <= n <         10 ms :         94
            10 ms <= n <         20 ms :          0
                   n >=        200 ms :         15

  Average Call Length Repartition
             0 ms <= n <         10 ms :         93
                   n >=      10000 ms :         30

This shows that most calls (94) had very fast responses (< 10ms), but 15 calls took over 200ms, indicating timeouts.

Real-Time Control During Tests

Interactive Controls

While a test is running, you can use the Control Buttons at the Top of the screen:

Pro Tip: Use these buttons during a test to find the exact breaking point without running multiple tests. Watch the "Retrans" and "Timeout" columns - when these start increasing rapidly, you've reached capacity!

1. Progressive Load Testing

Step 1: Baseline Test

Start with a low call rate to establish baseline:

Total Calls: 100
CPS: 1
Duration: ~100 seconds

Expected Result: 100% success rate

Step 2: Incremental Increase

Gradually increase load:

Test 1: CPS 1   → Monitor
Test 2: CPS 5   → Monitor
Test 3: CPS 10  → Monitor
Test 4: CPS 25  → Monitor
Test 5: CPS 50  → Monitor

Step 3: Find the Breaking Point

Continue increasing until you see:

Interpreting Test Results

📊 Important Note: All metrics, percentages, and thresholds mentioned in this tutorial (such as "95% success rate" or "5% retransmission limit") are general guidelines and examples, not absolute rules. Your acceptable thresholds may vary based on your specific environment, use case, and business requirements. Use these numbers as starting points and adjust based on your system's characteristics and testing objectives.

Success Criteria

✅ PASS - Healthy System:

Successful call:  1970 / 2000 = 98.5%
Failed call:      30
Retrans:          < 50 total
Timeout:          0
Response Time:    < 200ms

⚠️ WARNING - Needs Investigation:

Successful call:  1820 / 2000 = 91%
Failed call:      180
Retrans:          50-100
Timeout:          1-5
Response Time:    200-500ms

❌ FAIL - System Overloaded:

Successful call:  1560 / 2000 = 78%
Failed call:      440
Retrans:          190  ← Very high!
Timeout:          14   ← Critical!
Response Time:    > 2000ms

Common Bottlenecks and Solutions

High Retransmissions

Symptom: Retrans column shows high numbers

Causes:

Solutions:

Timeouts

Symptom: Timeout column > 0

Causes:

Solutions:

2. High Volume Testing Techniques

Using Call Duration to Control Concurrency

# Example: Testing 1000 concurrent calls

# Option 1: High CPS, short duration
CPS: 100
Call Duration: 10 seconds
Concurrent: ~1000 calls
Risk: High stress on call setup

# Option 2: Medium CPS, medium duration
CPS: 50
Call Duration: 20 seconds
Concurrent: ~1000 calls
Risk: Balanced

# Option 3: Low CPS, long duration
CPS: 17
Call Duration: 60 seconds
Concurrent: ~1000 calls
Risk: Tests endurance, not burst capacity

Monitoring During High-Load Tests

What to watch in CheckOutput:

  1. First 30 seconds: Watch for immediate failures
    • Check "Running" count increases properly
    • Verify no timeouts in first batch
  2. After 1 minute: Check statistics screen [2]
    • Success rate should be >95%
    • Current Calls should match expected concurrent
  3. After 5 minutes: Look for degradation
    • Response time increasing?
    • Retransmissions creeping up?
    • Peak concurrent calls steady or declining?

3. Stress Testing Patterns

Ramp-Up Test

Minutes 0-2:   CPS 10  (warm-up, establish baseline)
Minutes 2-4:   CPS 25  (press [*] twice)
Minutes 4-6:   CPS 50  (press [*] twice)
Minutes 6-8:   CPS 75  (press [*] twice)
Minutes 8-10:  CPS 100 (press [*] twice, watch for failures)

Spike Test

Minutes 0-3:   CPS 10  (baseline)
Minutes 3-5:   CPS 100 (press [*] 9 times rapidly - spike!)
Minutes 5-8:   CPS 10  (press [/] 9 times - recovery)
Check: Did system recover? Are there lingering issues?

Endurance Test

# Run at 80% of max capacity
If max = 50 CPS, run at 40 CPS for 4-8 hours

Monitor every 30 minutes:
- Success rate still >95%?
- Response time stable?
- Retransmissions not increasing?
- Memory leaks? (check target system)

4. Distributed Load Testing

Multi-Machine Setup

When a single machine can't generate enough load:

  1. Deploy multiple easySIPp instances
    • Machine 1: UAC 1 (CPS 150)
    • Machine 2: UAC 2 (CPS 150)
    • Machine 3: UAC 3 (CPS 150)
    • Total: 450 CPS
  2. Coordinate test execution
    • Start all UACs simultaneously
    • Use synchronized clocks
    • Aggregate results manually

Managing System Resources

CPU Optimization

easySIPp memory and cpu Monitoring

# Monitor memory usage during tests
docker stats easysipp

Network Tuning

# Increase network buffer sizes (Linux)
sudo sysctl -w net.core.rmem_max=26214400
sudo sysctl -w net.core.wmem_max=26214400

# Increase file descriptors
ulimit -n 65536

Best Practices

Troubleshooting Checklist

When Tests Fail Immediately

  1. Check IP addresses and ports (most common issue!)
  2. Verify target system is running
  3. Test connectivity: ping <target-ip>
  4. Check firewall rules
  5. Capture a wireshark pcap trace and analyze
  6. Review XML scenario matches target expectations

When Performance Degrades

  1. Check "Retrans" column in CheckOutput - increasing?
  2. Check "Timeout" column - any appearing?
  3. Monitor target system CPU/memory
  4. Check network utilization
  5. Review target system logs for errors

When Actual CPS < Target CPS

  1. Look for timeouts (system waiting for responses)
  2. Check if "Failed call" is increasing
  3. Reduce target CPS to achievable level
  4. Fix underlying issues (timeouts, retrans) first

Summary

You now know how to:
